Description:

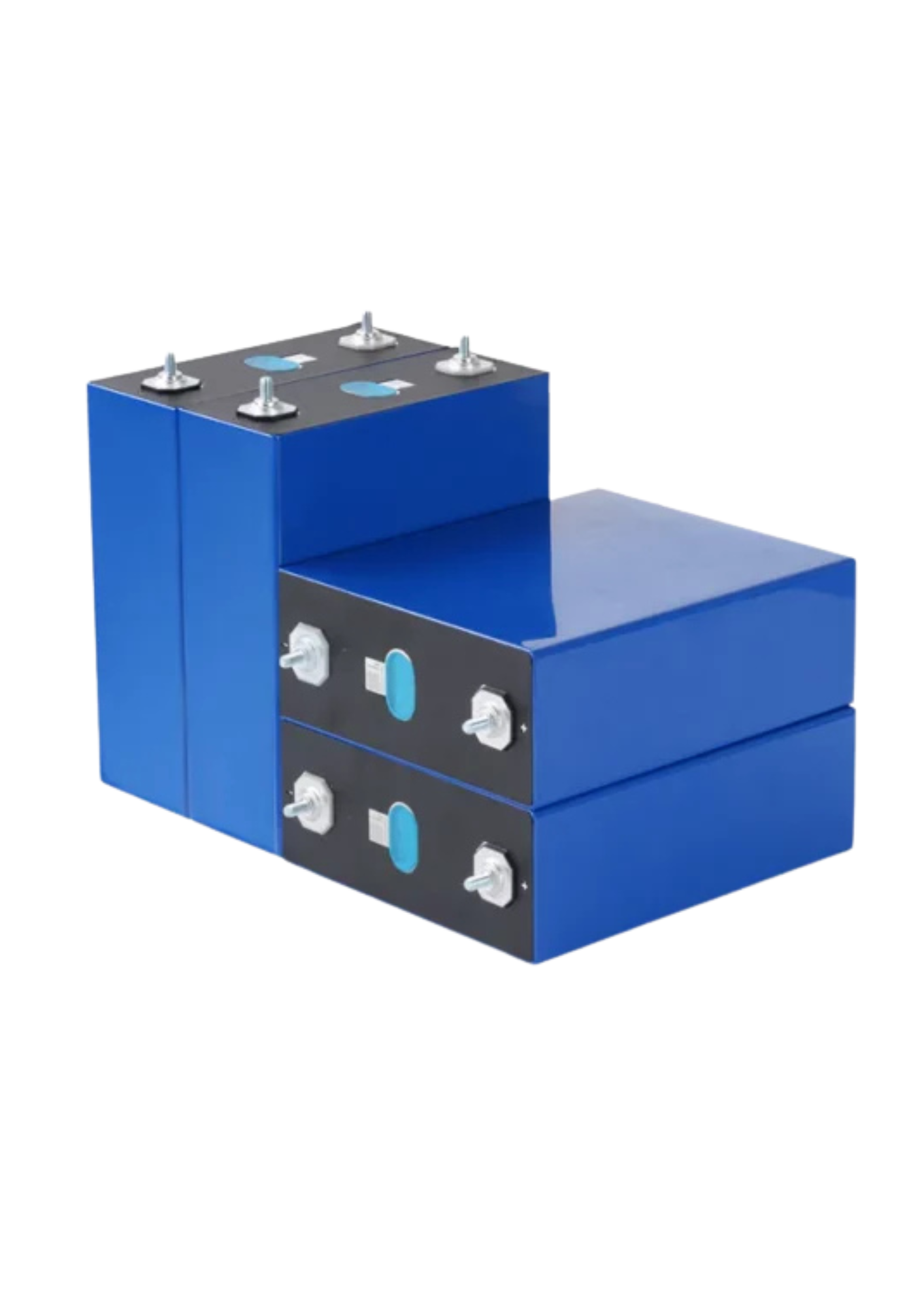

The Eve 280Ah LiFePO4 prismatic cell is a high-capacity, A-grade battery cell from a leading global manufacturer, EVE Energy. Renowned for its exceptional longevity and reliability, this cell is the go-to choice for building robust and long-lasting battery packs for a wide range of applications. With an impressive cycle life of over 8000 cycles and a stable 3.2V nominal voltage, it provides a safe, efficient, and powerful foundation for home energy storage, off-grid solar systems, electric vehicles (EVs), RVs, and marine power setups. Its low internal resistance ensures high efficiency and minimal heat generation, making it an ideal investment for your power needs.
Key Features & Specifications
* Model Number: LF280K
* Chemistry: Lithium Iron Phosphate (LiFePO_4)
* Nominal Capacity: 280 Ah
* Nominal Voltage: 3.2 V
* Nominal Energy: 896 Wh
* Cycle Life: ≥8000 cycles (at 80% DOD, 0.5C charge/discharge at 25°C)
* Internal Resistance: ≤0.25 mΩ (AC 1kHz, 40% SOC)
* Standard Charge Current: 0.5C (140 A)
* Maximum Continuous Charge Current: 1C (280 A)
* Maximum Charge Voltage: 3.65 V
* Standard Discharge Current: 0.5C (140 A)
* Maximum Continuous Discharge Current: 1C (280 A)
* Discharge Cut-off Voltage: 2.5 V
* Pulse Discharge Current: 2C (560 A) for 30 seconds
* Dimensions (L x W x H): 173.7 mm x 72 mm x 207.5 mm
* Weight: 5.42 ± 0.3 kg
* Operating Temperature (Charge): 0°C to 60°C
* Operating Temperature (Discharge): -30°C to 60°C
* Terminal Type: M6 threaded stud terminals
* Recommended SOC Window: 10% ~ 90%
* Self-Discharge Rate: ≤3% per month
Applications:
* DIY Powerwalls & Home Energy Storage Systems
* Off-Grid Solar and Backup Power
* Electric Vehicle (EV) Conversions
* RV and Campervan Battery Banks
* Marine and Boating Power Systems
* Uninterruptible Power Supply (UPS)
* Electric Golf Carts and Scooters
