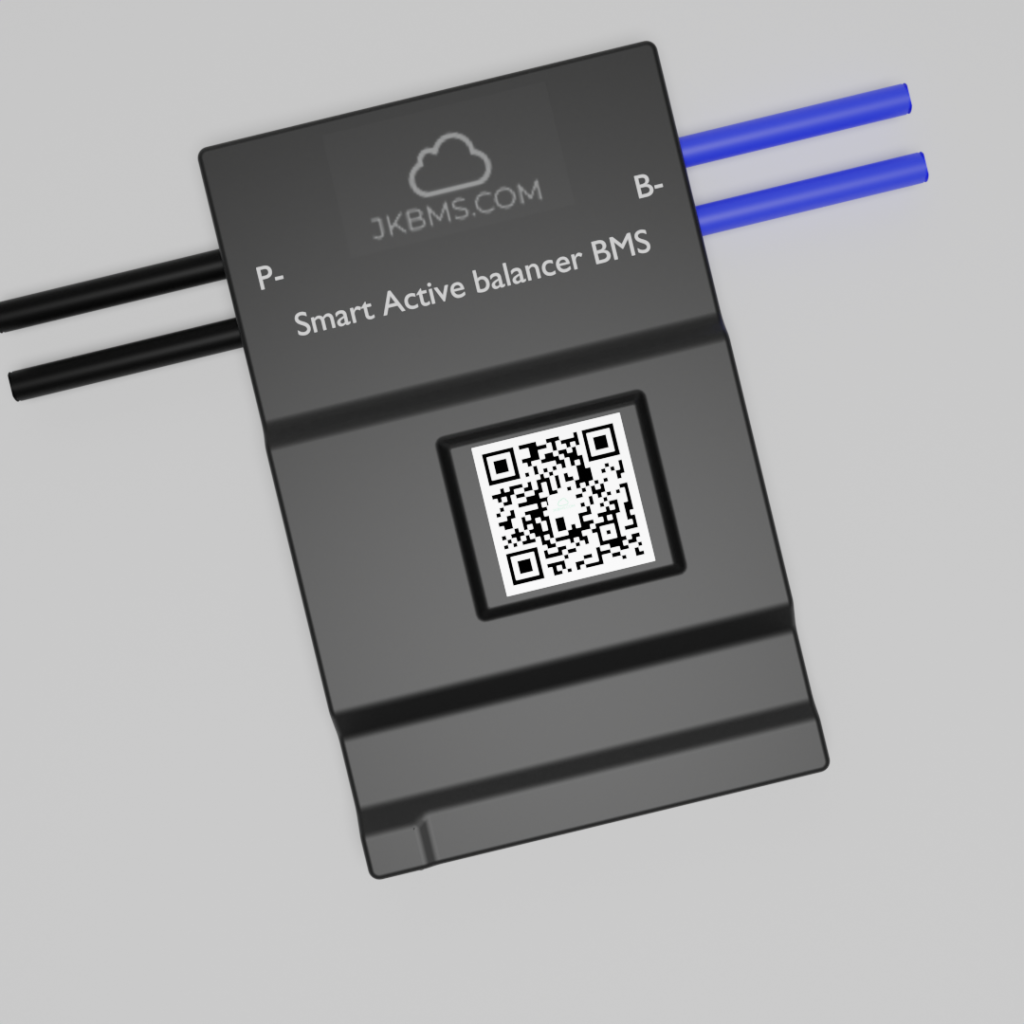

🔋 JK Smart BMS 8S–24S with Active Balancing
Next-Level Battery Management for LiFePO4 & Lithium-ion Packs
Experience intelligent battery protection and active balancing like never before. The JK Smart BMS (8S–24S) is your all-in-one solution for professional lithium battery systems — from solar power storage to electric vehicles and energy backup systems.
🌟 Key Features:
✅ Supports 8S to 24S Configurations
Flexible design — ideal for 24V, 36V, 48V, 60V, 72V, and 84V battery packs.
✅ Active Balancing Technology (Up to 5A)
Real-time energy transfer between cells — no wasted power, longer battery life.

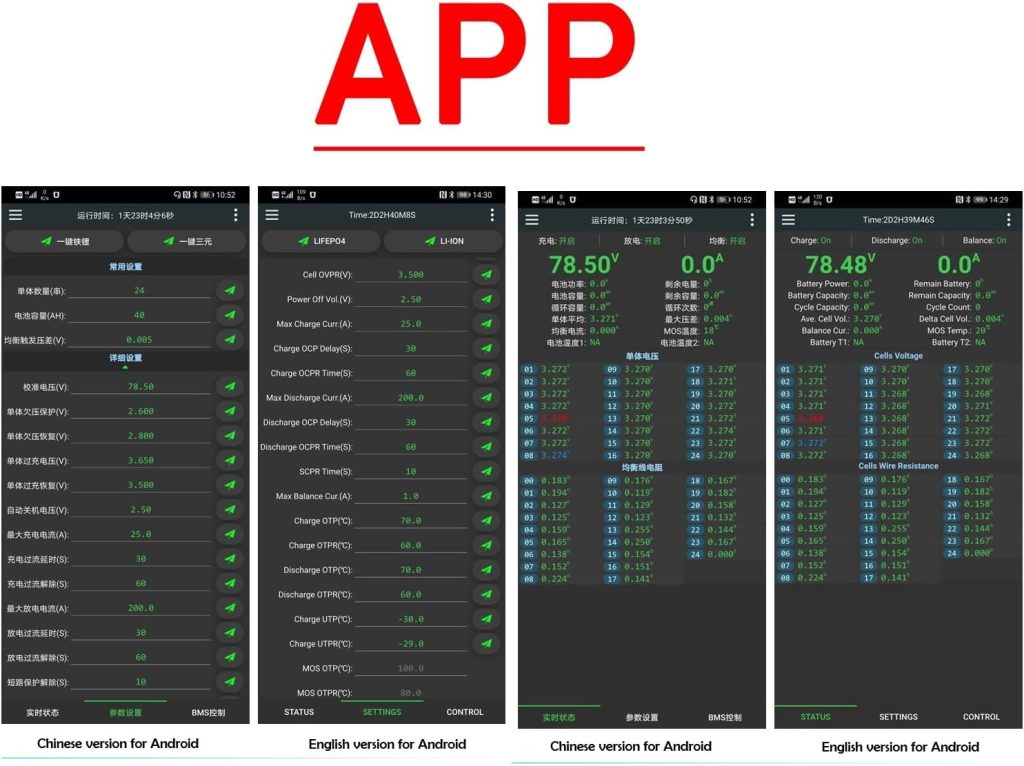

✅ Smart Bluetooth App & PC Communication
Monitor and configure parameters via mobile or computer (JK BMS App supported).
✅ Built-in Temperature Sensors & Protection
Automatically manages overcharge, over-discharge, overcurrent, short circuit & thermal risks.
✅ Multiple Output Options
CAN, UART, RS485 — ideal for system integration, solar inverters, and smart dashboards.
✅ Data Logging & Real-Time Monitoring
Track voltage, current, capacity, temperature, and cycle life easily.
📊 Technical Specifications
Battery Type: LiFePO4 / NMC / LTO
Voltage Range: 24V – 84V (depending on S count)
Balance Current: Up to 5A (Active Balancing)
Communication Ports: RS485 / UART / CAN
Display Support: Optional LCD & Bluetooth Modules
Protection Modes: OVP, UVP, OTP, SCP, OCP
Optional Accessories: Bluetooth dongle, LCD display, temperature sensors
🌍 Applications:
✅ Solar Energy Storage Systems
✅ Electric Bikes & Scooters
✅ Golf Carts, Rickshaws & Utility EVs
✅ DIY Power walls
✅ Industrial Lithium Projects
📦 Why Choose JK Smart BMS?
✅ Proven reliability in harsh conditions
✅ Active balance maximizes battery health
✅ Open protocol for easy integration
✅ Trusted by professionals & DIYers worldwide
Order Now & Charge with Confidence!
📞 Call: 01886612266 | 🌐 Visit: www.hyperenergybd.com📦 Nationwide Delivery | 💳 Cash / bKash / Online Payment
